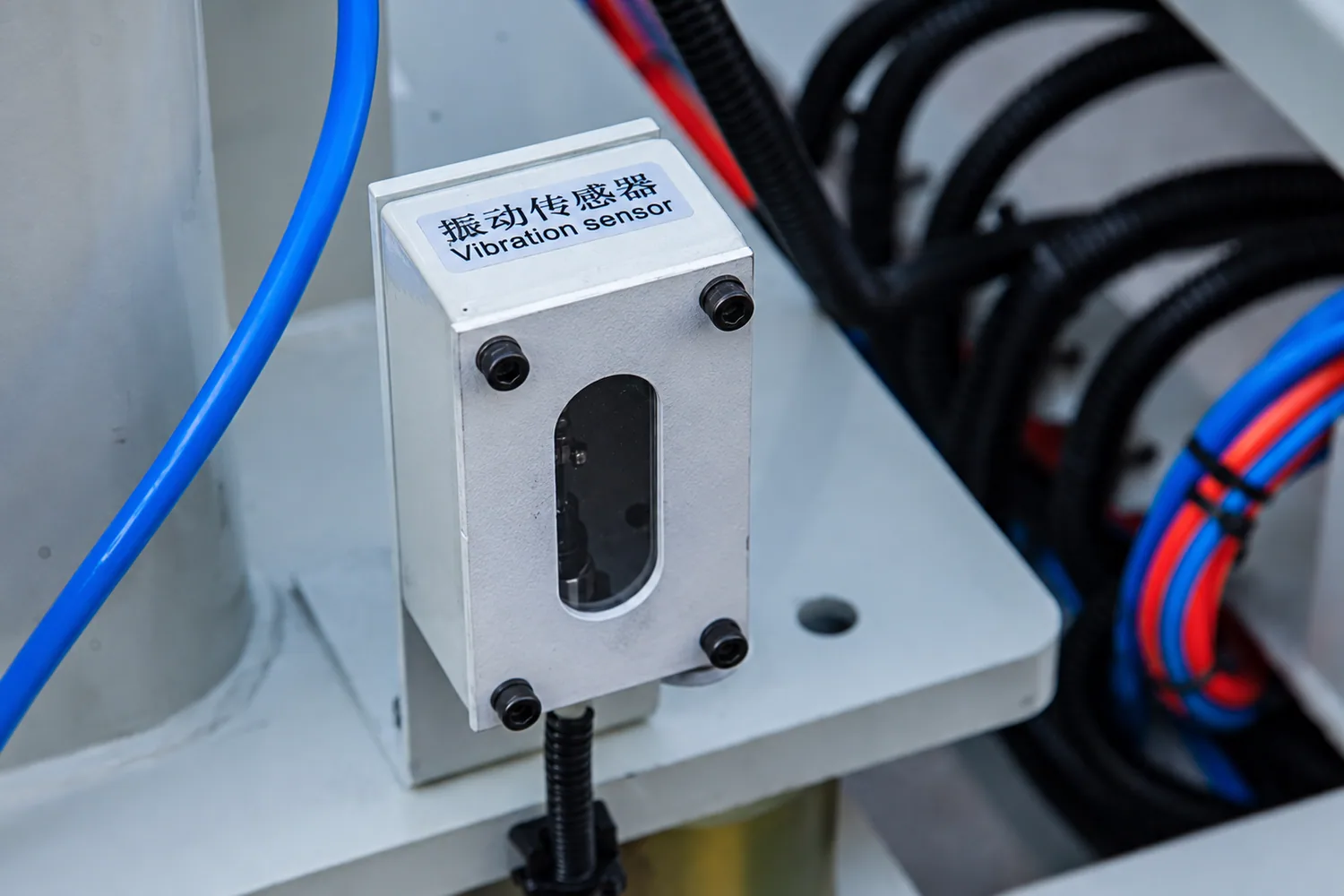

Vibration Sensor
A dedicated vibration sensor provides a monitoring point for machine operating condition.
Industrial Centrifugation · Product Details

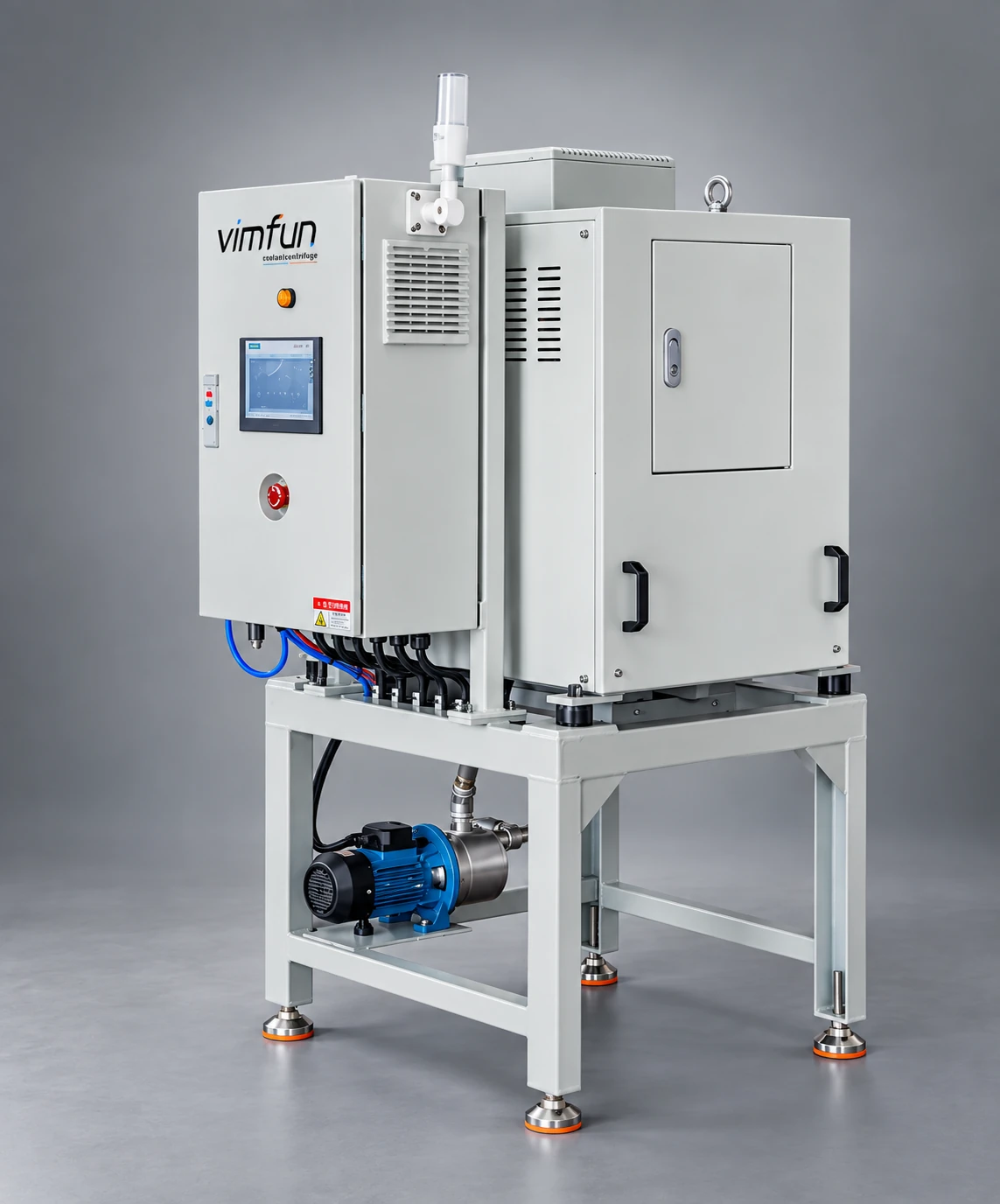

Automatic Sludge Discharge Centrifuge
Choose the model around your flow, separation force and solids loading. Automatic discharge, without disposable filter media in the centrifugal stage.
No online payment. Model selection and commercial terms are confirmed for each industrial application.
Select your model
Rated values. Final selection depends on your fluid and solids loading.VC-600 Technical Specifications
| Specification | VC-600 |
|---|---|
| Maximum rated flow | 60 L/min |
| Bowl speed | 8,000 rpm |
| Maximum separation force | 6,500 G |
| Solids capacity | 2 L |
| Installed power | 2.29 kW |
| Overall dimensions | 1500 × 940 × 770 mm |
| Machine weight | 343 kg |
| Standard electrical supply | 380V / 50Hz, three-phase |
| Optional electrical supply | 400V / 50Hz or 480V / 60Hz on request |
| Sludge handling | Automatic sludge discharge |
| Filter media | No disposable media in the centrifugal separation stage |
Dimensions reference for the selected model.
Equipment Operation
Shared equipment operation demonstration for the automatic discharge series.
Component details
Key Components and Connection Details
Close-up views support installation and maintenance discussions. Final connection, pneumatic and monitoring arrangements are confirmed against the delivered configuration.

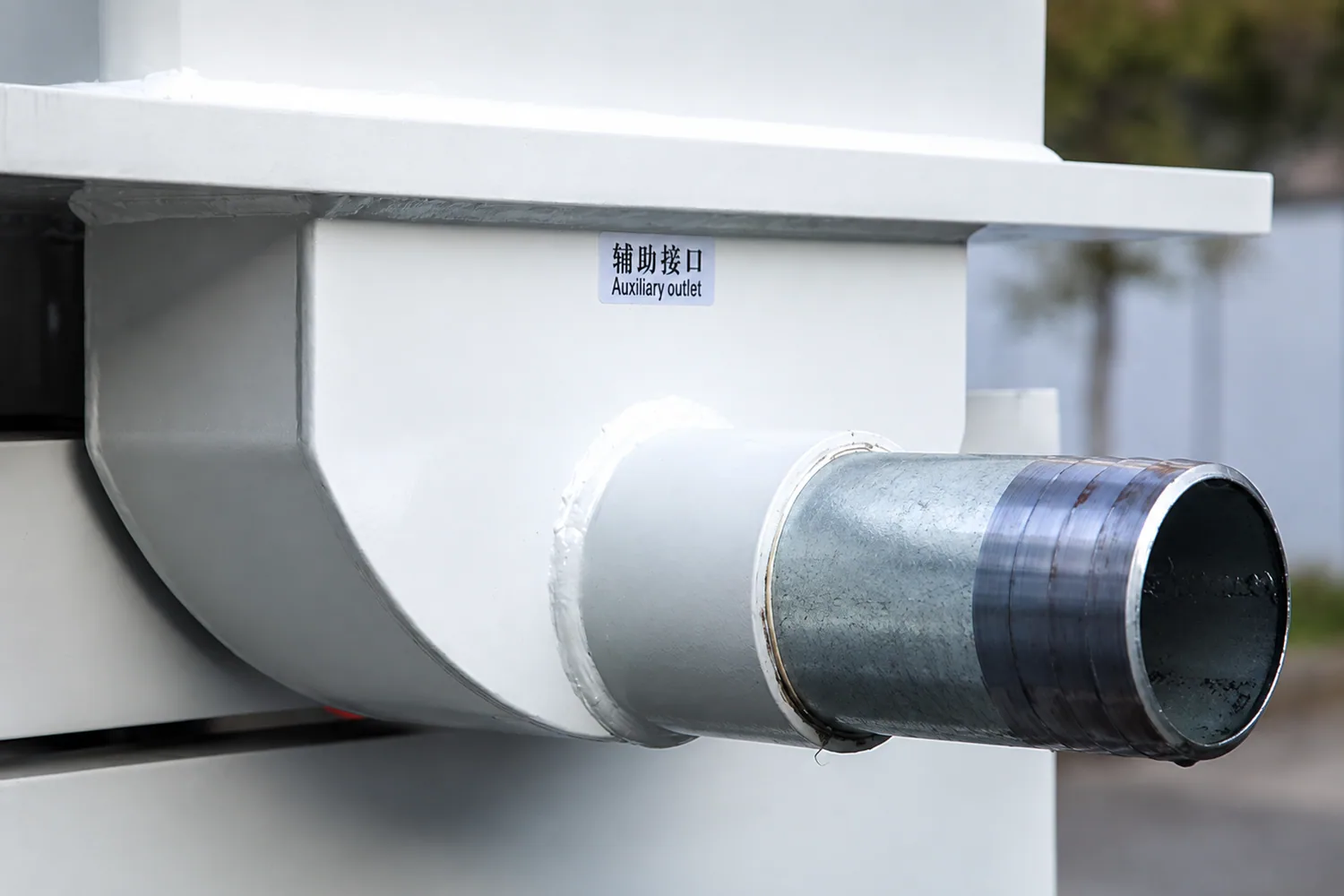

Auxiliary Outlet
The auxiliary outlet is shown for connection and installation review. Final pipe routing is confirmed for each project.

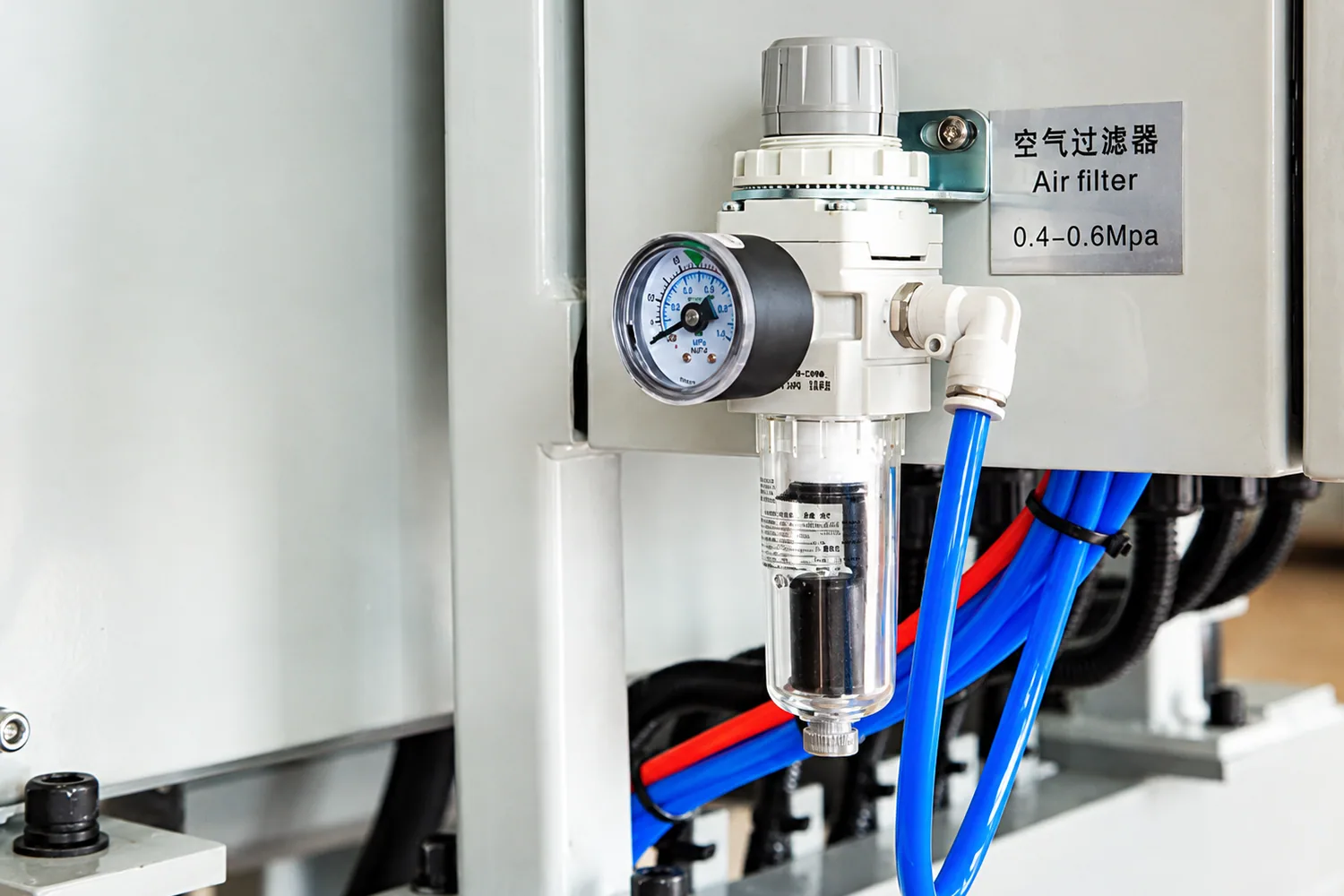

Air Filter & Regulator
The air preparation assembly filters and regulates the pneumatic supply used by the delivered machine configuration.
06 · Installation and support
Ready for Your Plant Standard
Voltage Options
380V/50Hz three-phase standard; 400V/50Hz and 480V/60Hz available on request.
System Integration
We review pump duty, pipe routing, service clearance, sump circulation and return position.
Maintenance & Parts
Routine support for the tubular bowl, discharge area, seals and wear parts.
View support →If your plant currently uses disposable media, compare the two methods in Centrifuge vs Paper Band Filter. Warranty, commissioning and spare-parts terms are confirmed in the quotation and order documents.
Find the Right Model for Your Process
Selected model: VC-600. Send your fluid type, flow requirement and solids loading.
Request a VC-600 Quote →
